Product description

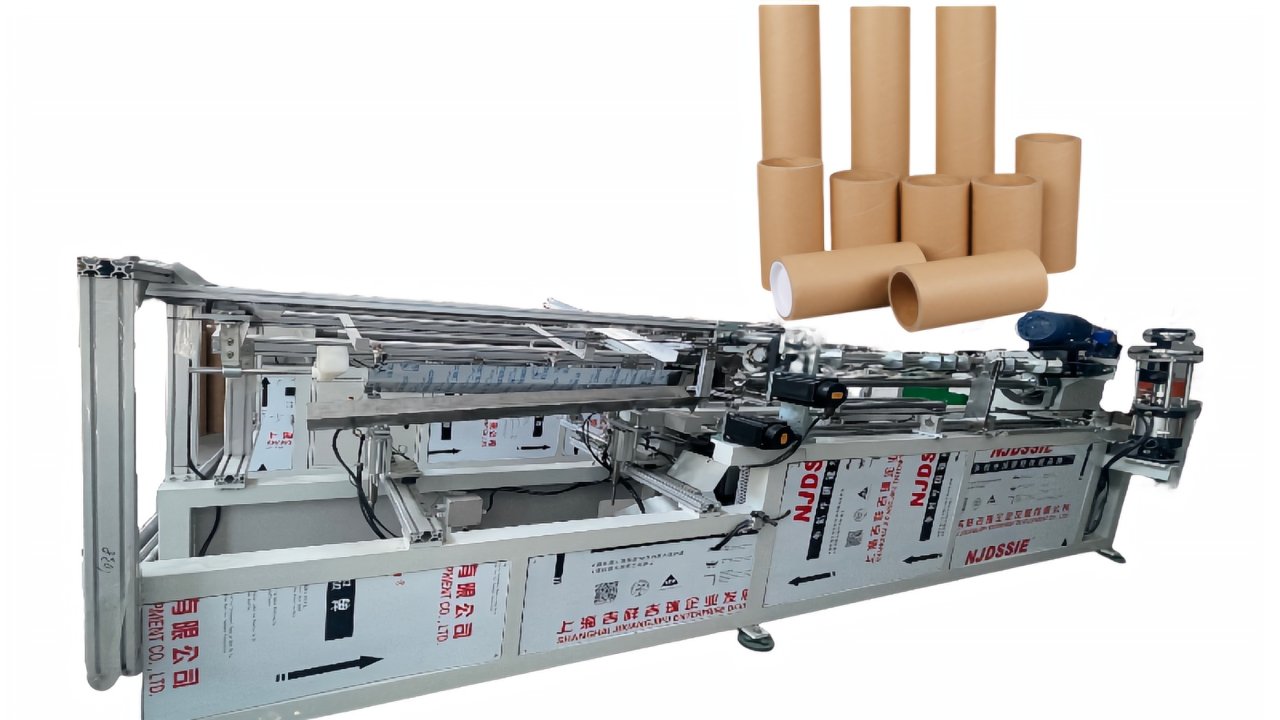

This paper core cutting machine can realise the whole process of automatic loading and unloading of paper tube.
The length of paper tube that can be loaded into the machine is 1600mm, the diameter is 30-160mm, the thickness
of paper tube is 0.8-10mm, the cutting accuracy of the machine is less than 0.5mm, the machine is very easy to
operate.
| model | SM1600-QAutomatic paper tube re-cutting machine |
|---|---|
| Paper Tube FeedingMethod | Automatic |
| Paper Tube Discharging Method | Automatic |
| Paper Tube Positioning | CNC Stepping System |
| active knife | yes |
| Paper tube length | 1600mm |
| Diameter of paper tube | 30 - 160mm |
| Minimum finished tube length | 55mm |
| Wall thickness of paper tube | 0.8 – 5mm |
| Maximum number of tools available | 12 |
| production efficiency | 5-7pcs/min |
| Machine Cutting Accuracy | <0.5mm |
| rated power | 3.5kw |
| gas consumption | 0.6Mpa |
| Machine weight | 1600kg |
| Machine size | 4930x2700x1550mm |
Machine features

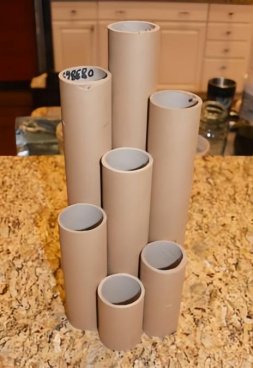

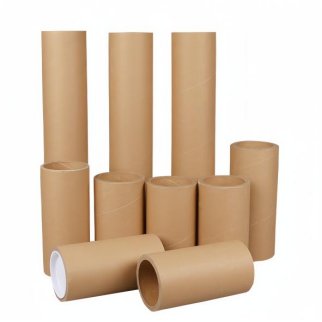

1.This machine is used to cut long paper tube into short paper tube precisely.
2.This machine can be used for very small diameter tubes. (Diameter up to 30MM)
3.This paper core cutting machine can realise fully automatic loading and unloading of paper tube.
4.This machine adopts PLC control system and touch screen, all parameters can be preset and displayed on the screen.
5、This machine can be automatically calibrated according to the length of the tube.
6、This machine is equipped with independent electric control box and input plug, after-sales troubleshooting and maintenance is more convenient.
