Professional paper tube packaging equipment manufacturer since 2005

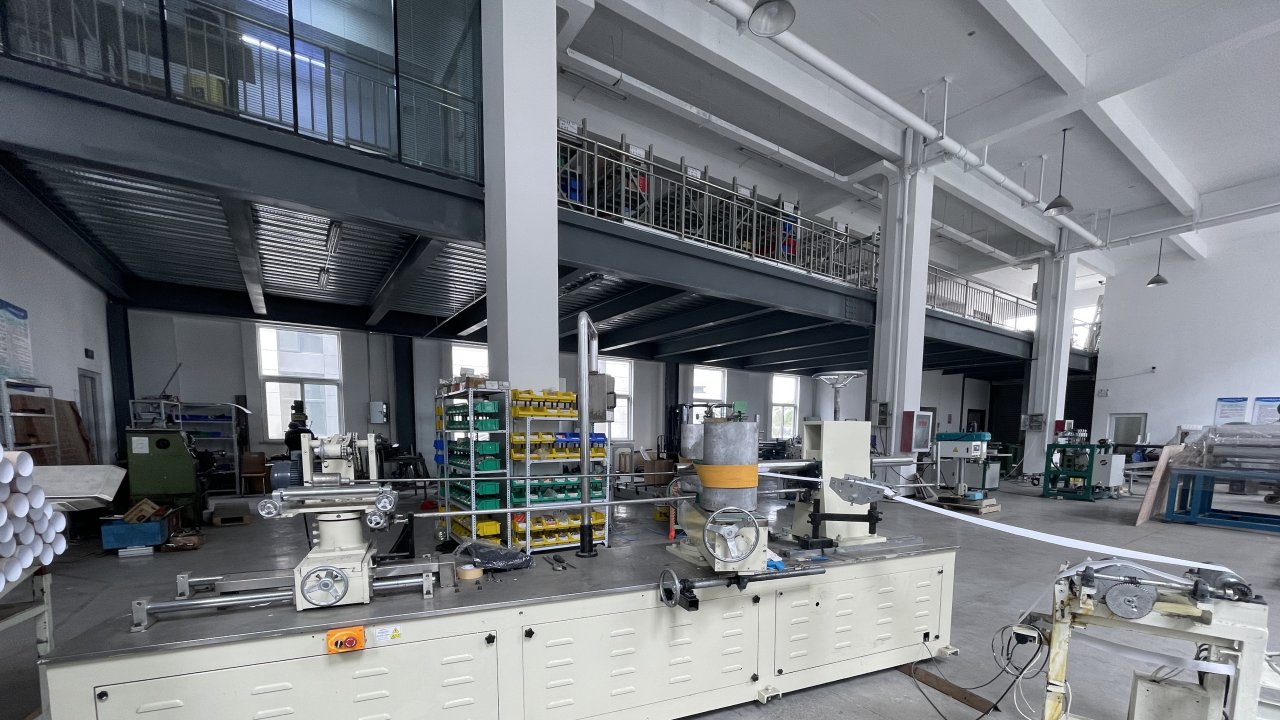

The fully automatic CNC spiral paper tube machine is designed for the production of paper cores. The machine employs a dual scraping gum gluing method, ensuring a tighter and more robust adherence of the paper core. With easy operation requiring only 1 to 2 personnel, it is user-friendly and straightforward.
Specifications:
| Attribute | Value |
|---|---|
| Model | SM-250 AUTOMATIC CNC SPIRAL ROUND PAPER TUBE MACHINE |
| Chassis Length | 1180mm |
| Max Diameter of Paper Tube | Ф250mm |
| Min Diameter of Paper Tube | Ф20mm |
| Paper Tube Material Thickness | 0.8-8mm |
| Cutting Method | Hydraulic pressure single round cutter |
| Mould Fixing Method | Jig and fixture |
| Pulley Swing Angle | Manual adjust |
| Electric Buttons | 13 layers |
| Machine Production Speed | 5-25M/Min |
| Cutting Trajectory | Servo motor |
| Main Engine Power | 11 kilowatts |
| Machine Working Voltage | 380V(3P) |
Additional Parameters:
| Attribute | Value |
|---|---|
| Belt Tension | Manual adjust |
| Main Engine Swing Angle | Electric button |
| Paper Tube Gluing Method | Double scraping gum gluing way |
| Air Pump Operation Personnel | 1 or 2 persons |
| Main Engine | 1 piece |
| Collection Device | 1 piece |
| Tube Mould | 1 piece |
| External Paper Gluing Stand | 1 piece |
| Internal Paper Waxing/Gluing Stand | 1 piece |
| Gluing Stand | 1 piece |
| Paper Stand | 1 piece |
| Toolbox | 1 piece |
| Belt | 1 piece |
Features:
Fully Automatic Operation: Automatic cutting, synchronized speed, and automatic return.
Precision Manufacturing: CNC processed sheet metal and precision parts to minimize errors.
High-Quality Materials: Assembly materials provided by long-term cooperating suppliers.
Adjustable Angle: After motor control, the angle of the belt headstock can be adjusted, reducing manual operation hassles.
Hydraulic Cutting: Utilizes hydraulic pressure single round cutter for smoother cuts and more stable performance.
